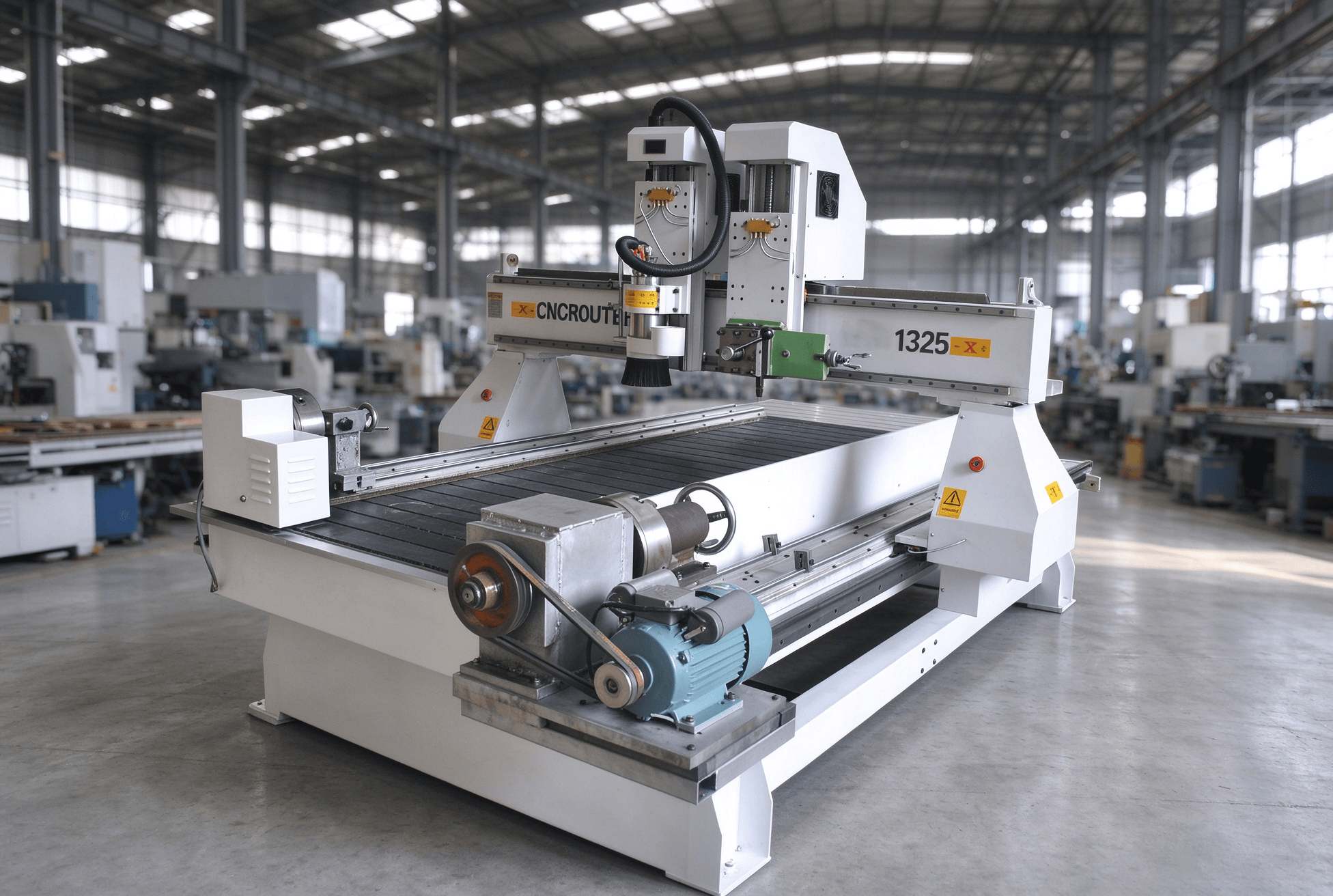

4 Axis CNC Router with CNC Turning

inquiry


Model

GS-1325C

X .Y Axis working area

1300X2500mm

Z-Axis working area

350mm

Repeatability

0.025(+/-mm)

Max Cutting Speed

15000mm/min

Rapid Traverse

25000mm/min

Spindle power rate

4.5KW(water cooled)

Controller

DSP B15

Accessory

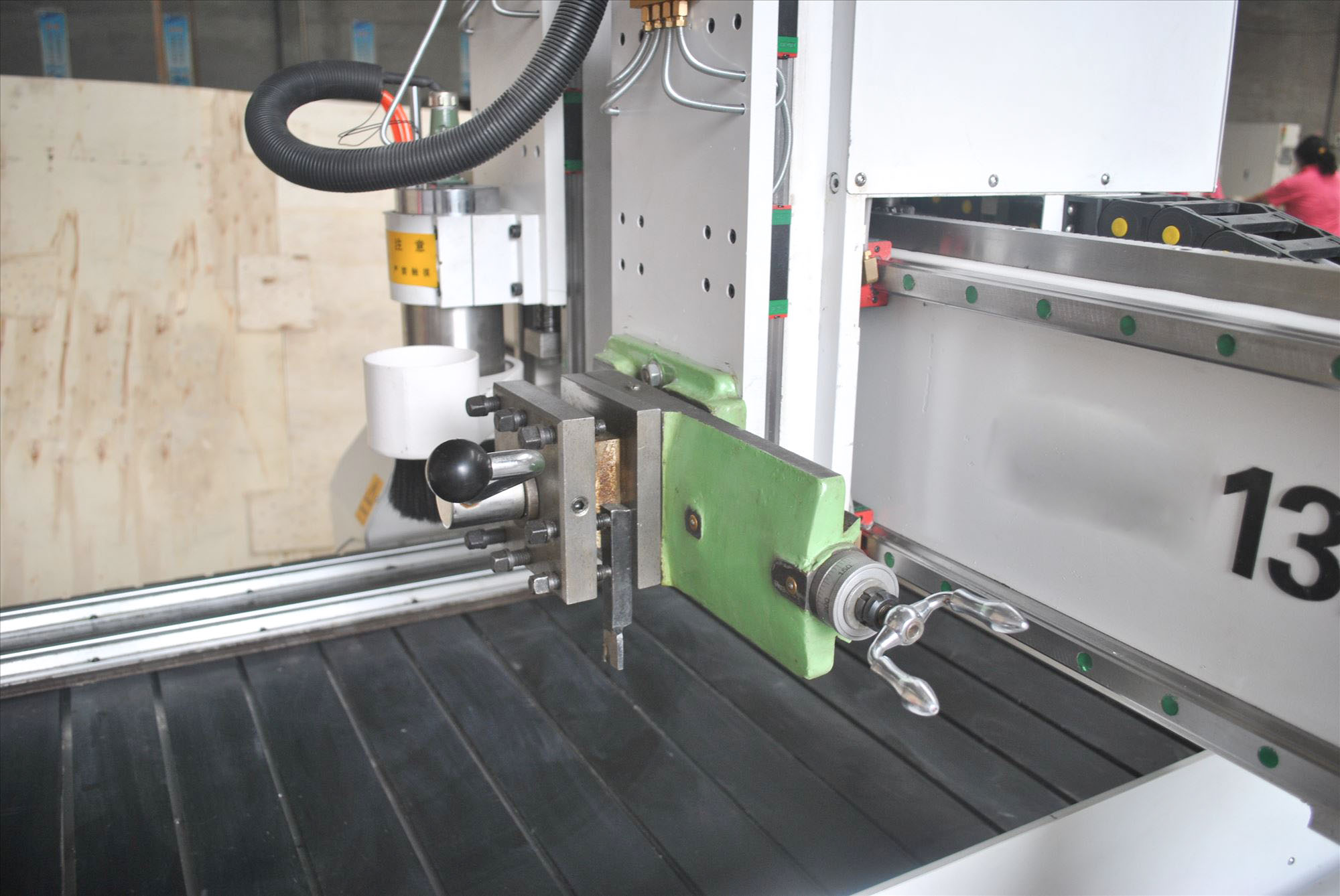

CNC turing head & rotary

Spindle rotating speed

0-24000rpm

command

G code*.u00*.mmg*plt

Work Mode

Step motor

Transmission

X Y helical rack gear,Z ball screw

Guide way

Linear guide way(hiwin)

Power

AC380V/50~60Hz







Suitable Industry:



Suitable for high-volume processing of non-ferrous metal sheet, Such as aluminum veneer, aluminum composite panel, copper, PVC board, acrylic, insulation materials, wood and composite panels such as sheet processing, cutting, slotting, engraving, milling, etc.


The automatic cnc 4 axis wood turning carving lathe can be used for making Staircases,

stairway balusters,stairway newel posts;dining table legs;end table legs;sofa table legs;bar

stool legs;chair legs;chair arm posts;chair stretchers;bed rails;lamp posts;baseball bats and

so on.
